Setup Guide

Compatibility

O3R Hardware requirements

Article

Description

OVP813

VPU with pre-installed ODS and PDS licenses

OVP812

VPU with pre-installed PDS license

OVP811

VPU with pre-installed ODS license

O3R222

  • 3D: 38k 224x172, 60°x45°
  • 2D: 1280x800, 127°x80°
  • O3R225

  • 3D: 38k 224x172, 105°x78°
  • 2D: 1280x800, 127°x80°
  • Use 1 Gigabit/s rated hardware for all cables and Ethernet switches.

    O3R Software requirements

    Software

    Version

    Firmware

    1.20.29

    ifmVisionAssistant

    2.10.9

    PLC hardware and software requirements

    A PLC with TCP/IP client capabilities is required to use the TCP/IP PLC interface.

    Setup procedure

    Network topology

    To estabilish a successful communication between PLC and VPU, both devices must be in same subnet range. Please refer to the Ethernet interfaces documentation for setting up the static IP address on VPU.

    Note

    • Please use only eth0 as a main communication interface between VPU and PLC.

    • eth1 can be used for the debugging purposes using the Vision Assistant or the ifm3d API.

    • Ethernet ring topologies are not supported: eth0 and eth1 must not be in same subnet range.

    Workflow

    The expected workflow is represented in the state machine below:

    State Machine

    Note

    If there are any diagnostics raised during the configuration or operation, please review the diagnostic documentation to resolve the issues.

    ODS application setup

    To create and configure the ODS application instance please refer to the ODS section.

    Then, configure presets, following the presets documentation. The PLC application is only able to switch between already existing presets of the ODS application. If the requested preset index does not existing, then the system will raise a diagnostic event indicating an invalid configuration. Therefore, the presets of the ODS application have to be configured prior to creating the PLC application.

    Example preset configurations for different driving scenarios can be found in the driving scenarios document

    PLC application setup

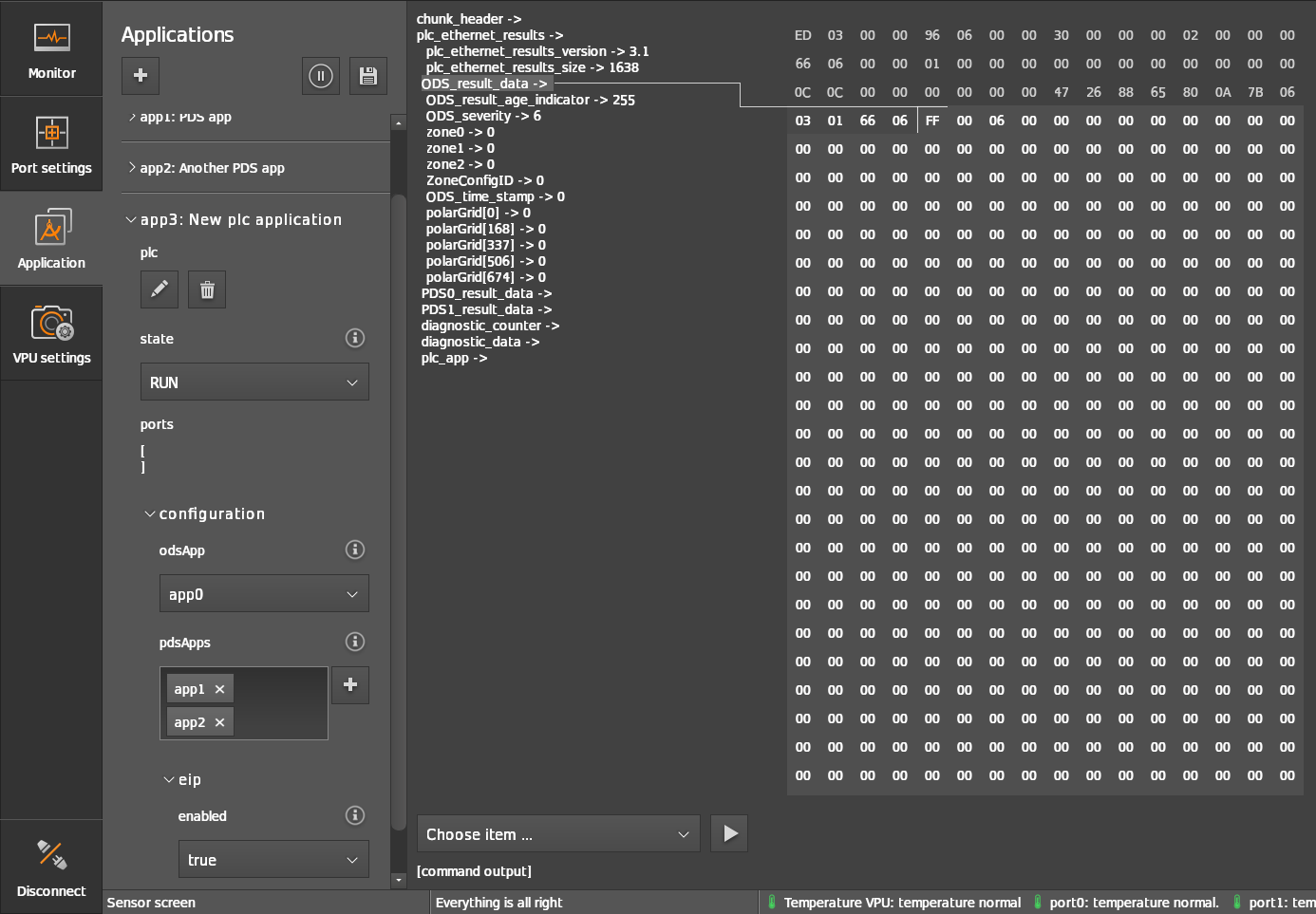

    In the ifmVisionAssistant, create the PLC application in the Application tab by clicking on the + icon.

    Configuration parameters

    Parameter

    Description

    name

    Custom name for the application.

    state

    The current application state. Per default, the state is set to RUN.

    configuration/odsApp

    Identifier of the ODS app instance, for example app0.

    configuration/pdsApp

    Identifier of the PDS app instance, for example app0.

    The PLC application is per default in RUN state. Therefore the ODS application shall be saved to be in RUN state at every bootup session.

    Note

    The PLC embedded application sends data over TCP/IP without waiting for acknowledgement. When additional network load is introduced by the user, it may result in network saturations leading to communication delays.

    Exploring the data

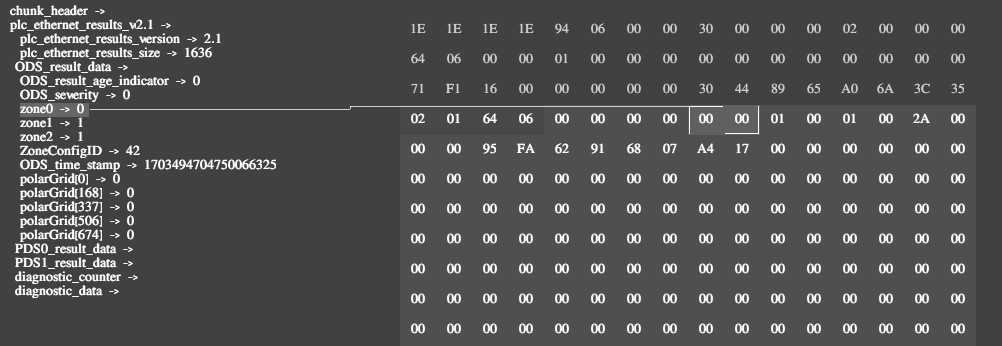

    The ifmVisionAssistant supports live interactive data exploration for debugging purposes. See the data corresponding to zone occupancy in this example:

    Example zone occupancy Data Frame exploration

    Saving applications

    Configurations can be persisted between reboots of the VPU using the save-init function. In the ifmVisionAssistant, this can be accomplished by pressing the save button under the applications tab. To remove this, factory reset the VPU.

    alt text

    Function blocks

    Available function blocks are documented in the function blocks documentation.
